Magma

A customizable SvelteKit dashboard app with a grid-based widget editor, multi-language support, and Docker deployment.

Features

• Grid Dashboard Editor — Drag, resize, and arrange widgets on an unbounded centered grid with cell-size snapping. Edit mode toggles drag bars, resize handles, and a floating widget palette.
• Widget System — Built-in widgets include:
  • Button — Link launcher with icon picker
  • Search — Search bar with configurable provider
  • Timer — Countdown / stopwatch timer
  • Weather — Live weather display with location presets
  • Calendar — Date and events view
  • Stack (horizontal / vertical) — Group child widgets into rows or columns
  • Docker Status — Monitor container states
  • Service Status — HTTP endpoint health checks
  • Fetch — Display content from any URL
  • DeepSeek — Account balance and token usage monitor
• Settings Panel — Three configuration sections:
  • System — Grid dimensions (cell width/height), background image, language
  • Dashboard — Widget layout, search, network, theme, and integration references
  • CSS — Custom CSS overrides loaded after built-in styles
• Internationalization — i18n via inlang / Paraglide JS. Ships with English and Vietnamese.
• Remote Functions — Server-side data fetching for widgets via SvelteKit remote functions.
• Dark Theme — Warm dark translucent panels with yellow accent. Powered by shadcn-svelte components and Tailwind CSS 4.
• Docker Support — Multi-stage Docker build and docker-compose.yml for production deployment.

Getting Started

Prerequisites

• Node.js >= 26
• pnpm

Install

pnpm install

Development

pnpm dev

The dev server starts at http://localhost:5173.

Build & Preview

pnpm build
pnpm preview

Type Checking

pnpm check

Configuration

All configuration lives in the config/ directory at the project root. In Docker deployments this directory is mounted as a volume.

File	Purpose
config/system.yaml	App-level settings (grid dimensions, background image, language)
config/dashboard.yaml	Widget layout, theme, search providers, network and integration references
config/override.css	Custom CSS overrides (loaded after built-in styles)

Environment variables referenced in YAML (e.g., for API tokens) are resolved at runtime. Secrets should never be committed to YAML files directly.

Docker

docker compose up -d

The app listens on port 3000. Configuration files in config/ are automatically mounted into the container at /config.

Environment variables for production:

Variable	Default	Description
NODE_ENV	production	Runtime environment
HOST	0.0.0.0	Server bind address
PORT	3000	Server port
ORIGIN	http://localhost:3000	Public URL (used for CSRF protection)
CONFIG_DIR	/config	Path to configuration directory

Project Structure

magma/
├── config/                  # Runtime configuration (YAML + CSS)
│   ├── dashboard.yaml
│   ├── system.yaml
│   └── override.css
├── docs/                    # Design specs and planning
├── messages/                # i18n translation files
│   ├── en.json
│   └── vi.json
├── src/
│   ├── lib/
│   │   ├── components/      # Svelte components
│   │   │   ├── dashboard/   # Dashboard editor, widget palette, property panels
│   │   │   ├── settings/    # Settings panel
│   │   │   └── ui/          # shadcn-svelte UI primitives
│   │   ├── hooks/           # Svelte reusable logic
│   │   ├── paraglide/       # Auto-generated i18n (via inlang)
│   │   ├── remotes/         # Server remote functions
│   │   ├── server/          # Server-only code (config I/O, etc.)
│   │   └── types/           # JSDoc type definitions
│   ├── routes/              # SvelteKit pages and API endpoints
│   │   ├── (dashboard)/     # Main dashboard page + editor
│   │   ├── api/             # REST API endpoints
│   │   └── settings/        # Settings page
│   └── app.html             # HTML shell
├── static/                  # Static assets
├── build/                   # Production build output
├── Dockerfile
├── docker-compose.yml
└── package.json

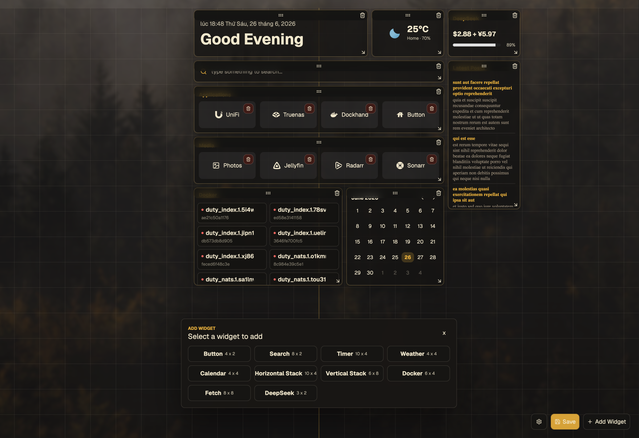

Dashboard Editor

• The grid canvas spans the full viewport and is centered horizontally (x=0 at page center).
• Widget positions use a centered coordinate system — negative x is left of center, positive x is right.
• The grid is unbounded — no fixed column or row limits. Only overlap is enforced.
• Cell size is configurable in Settings → System (cellWidth / cellHeight, default 100×100 px).
• In edit mode, grid lines are shown at cell-size intervals with a highlighted yellow center line.
• Widgets are moved by dragging their top drag bar; resize handles appear on hover in edit mode.
• Add Widget opens a floating bottom palette. Dropping a widget scans ±20 cells from the drop point for the nearest free position.
• Changes are not autosaved — press Done to persist the layout.

Widgets

Widgets are defined in config/dashboard.yaml under dashboard.widgets. Each widget has:

- id: my-widget
  type: button # One of the supported widget types
  title: My Widget
  x: 0 # Grid X position (centered)
  y: 0 # Grid Y position
  w: 4 # Width in cells
  h: 2 # Height in cells
  config: {} # Type-specific configuration

Stacks can contain child widgets:

- id: my-stack
  type: stack-horizontal
  title: Launchers
  x: -5
  y: 2
  w: 10
  h: 2
  config:
    gap: 12
  children:
    - id: app-1
      type: button
      title: App 1
      config:
        icon: lucide:globe
        url: https://example.com

Remote Functions

Server-side data fetching is implemented via SvelteKit remote functions in src/lib/remotes/*.remote.js. These provide a type-safe RPC layer for widgets that need live data (weather, Docker status, DeepSeek balance, etc.).

License

MIT
