LexeConnect

Version 1.0.5

A simple and secure protocol for one-click credential sharing. Supports app-to-app and app-to-service sharing. Based on HPKE, a modern public key encryption standard (RFC 9180) co-authored by Cloudflare.

Use cases

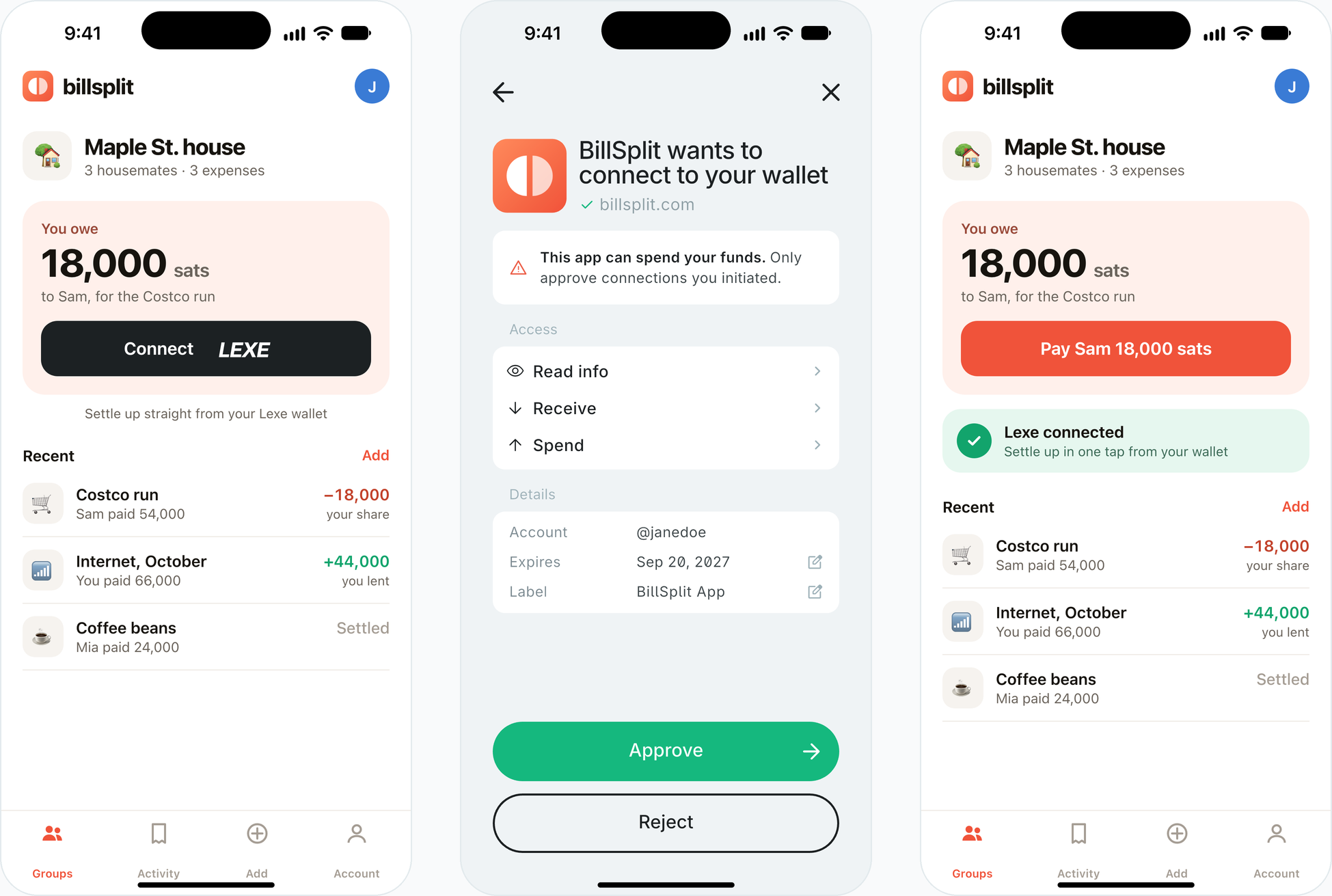

App-to-app credential sharing

Example: BillSplit (a mobile app for splitting bills with friends) adds a "Connect Lexe" button so that BillSplit users can settle what they owe from their Lexe wallet without having to navigate menus or copy and paste a Lexe client credential string.

Overview:

• User taps "Connect Lexe" within BillSplit and is redirected to the Lexe mobile app.
• Within the Lexe app, the user approves BillSplit's requested scopes and spending budget in one tap, and is redirected back to BillSplit.
• BillSplit receives the user's credential and can now pay friends from the user's Lexe wallet, subject to the user's approved scopes and budget.

Demo: video

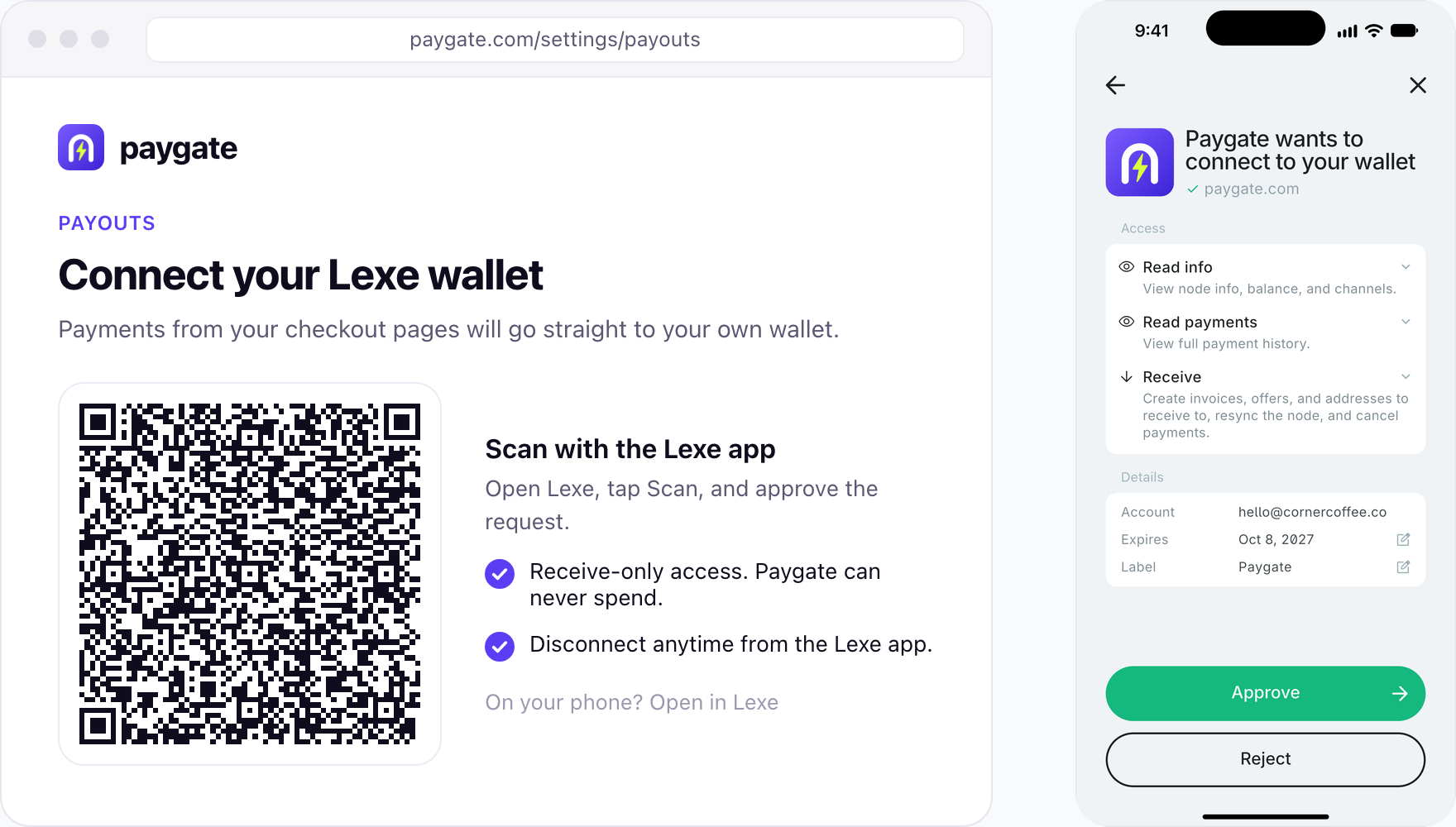

App-to-service credential sharing

Example: Paygate.com (a web app) allows merchants to share a receive-only Lexe client credential so that Paygate.com can host a checkout page which accepts Bitcoin e-commerce payments into the merchant's Lexe wallet without having the ability to spend any funds.

Overview:

• Paygate.com displays a QR code which encodes a LexeConnect connection string.
• The merchant scans the QR code with their Lexe app, and is taken to a page showing Paygate's connection request. The merchant approves Paygate's requested scopes and permissions.

Demo

Lexe runs a live demo at https://lexeconnect.lexe.app, which serves the lexeconnect-demo example. To try the LexeConnect flow, scan the QR code with the Lexe app, or tap "Open in Lexe" on a phone with Lexe installed.

Credential request

The app or service initiating a request is the REQUESTER; the Lexe app is the WALLET.

To request a credential, the REQUESTER constructs a connection string: a url which can be opened as a link, QR-encoded, or pasted into the WALLET. It is formed by appending query params to the WALLET's connect url, which for Lexe is https://lexe.app/connect:

<connect url>?<params>

For example:

https://lexe.app/connect?v=1&redirect_uri=<uri>&ephemeral_hpke_pubkey=<pubkey>&one_time_secret=<secret>&scopes=read_info,read_payments,receive

Request and response fields are typed as JSON values. As query params, each field is rendered as a string and MUST be percent-encoded (not form-encoded, so + is literal): strings render as-is, numbers render in base-10, and arrays render as comma-separated lists, e.g. scopes=read_info,read_payments,receive.

The full reasoning behind the requirements below is in Security Analysis.

Protocol params

These params are common to any WALLET implementing this protocol.

Param	Description
v	Unsigned integer, required. The protocol version; currently 1. The WALLET MUST reject requests with an unrecognized version, but drop unrecognized params, so new params can be added without a version bump.
redirect_uri	String, set exactly one of redirect_uri, post_url, or mailbox_url. Where the user is redirected after approving (or rejecting) the request. MAY be any valid uri, but SHOULD be a https:// url registered as an Android App Link or iOS Universal Link. Any other uri can be claimed by other installed apps or local processes, which capture only ciphertext (see Security Analysis).
post_url	String, set exactly one of redirect_uri, post_url, or mailbox_url. The WALLET POSTs the response to this url. MUST be https://. See post_url delivery.
mailbox_url	String, set exactly one of redirect_uri, post_url, or mailbox_url. The url of a mailbox which relays the response blob to the REQUESTER. MUST be https://. See mailbox_url delivery.
ephemeral_hpke_pubkey	String, required if redirect_uri or mailbox_url is set. An x25519 public key, encoded as exactly 64 lowercase hex characters. The response is HPKE-encrypted under it (see Encryption). MUST be freshly generated per request, and is recommended even with post_url.
one_time_secret	String, required. A random per-request secret of exactly 32 lowercase hex characters, echoed back in the response. The REQUESTER MUST match it against an outstanding request, and MUST reject reuse. Outstanding requests SHOULD expire after a short window.
account	String, optional but recommended. Lets the user check which REQUESTER account they are connecting their wallet to. MUST uniquely identify the account in a form the user will recognize, e.g. @janedoe or janedoe@gmail.com. At most 64 UTF-8 bytes. Shown on the approval screen and bound into the HPKE aad; see Request forwarding.
metadata	String, optional, at most 1024 UTF-8 bytes. Echoed back verbatim in the response. The REQUESTER may want to base64url encode a JSON blob here.

REQUESTERs MAY additionally pass requester_name (string) and requester_icon (https:// url), displayed only for verified REQUESTERs; see User Approval.

Credential params

These params are specific to Lexe, so a WALLET adopting this protocol most likely defines its own. Each has a grant class:

• exact: read-only on the approval screen. The WALLET MUST NOT let the user change it, so the user either grants it exactly as requested or rejects the whole request.
• prefill: only prefills the field's value on the approval screen, which the user may freely change.

Param	Grant	Description
scopes	exact	Array of strings, optional. The requested scopes, e.g. read_info, read_payments, receive. At least one scope or permission MUST be requested.
permissions	exact	Array of strings, optional. Any explicitly requested fine-grained permissions. At least one scope or permission MUST be requested.
label	prefill	String, optional. A suggested label for this credential. If unset, the WALLET chooses the prefill, e.g. the verified receiving domain.
expires_at	prefill	Unsigned integer, optional. A suggested expiration time for the credential, in milliseconds since the UNIX epoch. If unset, the WALLET chooses the prefill, e.g. one year, or no expiration for spending credentials with a budget attached.
budget_limit*	prefill	String, optional. A suggested budget limit, denominated in budget_currency. Serialized as a base-10 decimal string.
budget_currency*	exact	String, required if budget_limit is set. The unit the budget is denominated in: sat for bitcoin, or a lowercased ISO 4217 code (e.g. usd, eur).
budget_period*	exact	String, optional. How frequently the budget should reset. Options: day, week, month, or never.
budget_period_multiple*	exact	Unsigned integer, optional. The multiple of budget_period between resets, e.g. the 5 in "every 5 days". Defaults to 1. MUST NOT be set if budget_period is never.
budget_first_reset*	exact	Unsigned integer, optional. Time of the first budget reset, in milliseconds since the UNIX epoch. MUST be within one period of the approval time. MUST NOT be set if budget_period is never.
budget_utc_offset_secs*	exact	Signed integer, optional. The timezone in which budget resets are computed, only relevant when budget_period is month. Expressed as a UTC offset in seconds: positive east of UTC, negative west. MUST be within ±14 hours.

Budget params the REQUESTER leaves unset are chosen by the WALLET and editable by the user.

* Planned. Budgets are not yet implemented, so Lexe rejects requests that set any of these params, and their definitions may change before release.

User Approval

The user enters the WALLET's approval screen in one of three ways:

• Scans a QR code which encodes the connection string (app-to-service).
• Pastes the connection string into the WALLET (app-to-service).
• Is redirected to the WALLET's connect url by the REQUESTER (app-to-app).

The WALLET MUST register its connect url as an Android App Link and iOS Universal Link, so that in the redirect case, the request is guaranteed to open in the genuine WALLET rather than the browser or an impostor app.

An example approval screen:

billsplit.com wants to connect to your Lexe wallet.

Account: @janedoe

Scopes: read_info, read_payments, receive, spend

Budget: $20 / month (tap to edit)

Expires: in 1 year (tap to edit)

Label: BillSplit App (tap to edit)

[ Reject ] [ Approve ]

• To prevent phishing, the headline MUST highlight the receiving domain of the redirect_uri or post_url. If mailbox_url is set, or redirect_uri is not https://, no receiving domain is known, so the headline SHOULD read "An unverified app", appending the uri's scheme and host when redirect_uri is set, e.g. "An unverified app (myprotocol://)". The rest of the uri is chosen by the REQUESTER, so it SHOULD NOT be displayed.
• The WALLET MUST show the requested scopes, permissions, and budget; the presentation is left to the WALLET.
• If account is set, the WALLET MUST display it as the REQUESTER's account, e.g. Account: janedoe@gmail.com; see Request forwarding.
• For spending credentials, the approval screen SHOULD warn the user to approve only connections they initiated themselves; see Request forwarding.
• The REQUESTER MAY include requester_name (string) and requester_icon (https:// url) params in the connection string. These are chosen by the REQUESTER itself, and a malicious REQUESTER would simply pass the branding of the app it is impersonating, so the WALLET MUST NOT display them unless the REQUESTER's identity has been verified out-of-band, e.g. via a whitelist or an automated domain-verified registration flow, similar to OAuth Dynamic Client Registration.

Credential response

Once the user approves (or rejects) the request, the WALLET builds a response and delivers it via the redirect_uri, post_url, or mailbox_url from the request. If the request itself is invalid, e.g. a malformed param or an unrecognized version, the WALLET shows the user an error and delivers no response; the REQUESTER's request expiration covers this case.

The response is a single JSON object in one of two variants: success, containing credential, or error, containing error. The REQUESTER MUST ignore unrecognized fields, so new fields can be added without a version bump.

Approval is all-or-nothing: a granted credential MUST carry the requested exact params (e.g. scopes and permissions) unchanged; otherwise the WALLET MUST return error.

Protocol fields

These fields are common to any WALLET implementing this protocol.

Field	Description
credential	String. The granted client credential. Returned on success.
error	String. An error code: user_rejected if the user rejected the request, otherwise other. The REQUESTER MUST treat unrecognized codes as other, so new codes can be added in the future.
error_message	String, optional. A human-readable description of the error. Only returned alongside error.
one_time_secret	String. The request's one_time_secret, echoed back verbatim. Returned on both success and error.
account	String. The request's account, echoed back verbatim if set in the request. Returned on both success and error. The REQUESTER MUST reject a response whose value differs from its request.
metadata	String. The request's metadata, echoed back verbatim if set in the request. Returned on both success and error.

Credential fields

These fields echo the granted values of the credential params, so a WALLET adopting this protocol echoes its own. All are returned only on success; the budget_* fields only if a budget is attached.

Field	Description
scopes	Array of strings. The granted scopes, exactly as requested.
permissions	Array of strings. The granted fine-grained permissions, exactly as requested.
expires_at	Unsigned integer. Expiration time of the granted credential, in milliseconds since the UNIX epoch. Not returned if the credential never expires.
budget_limit*	String. The approved budget limit, denominated in budget_currency. Serialized as a base-10 decimal string.
budget_currency*	String. The unit the budget is denominated in: sat for bitcoin, or a lowercased ISO 4217 code (e.g. usd, eur).
budget_period*	String. How frequently the budget resets: day, week, month, or never.
budget_period_multiple*	Unsigned integer. The multiple of budget_period between resets, e.g. the 5 in "every 5 days". Not returned if budget_period is never.
budget_first_reset*	Unsigned integer. Time of the first budget reset, in milliseconds since the UNIX epoch. Not returned if budget_period is never.
budget_utc_offset_secs*	Signed integer. The timezone in which budget resets are computed, only relevant when budget_period is month. Expressed as a UTC offset in seconds: positive east of UTC, negative west.

* Planned. Not returned until budgets are implemented; definitions may change before release.

A successful response:

{
    "credential": "<client credential>",
    "one_time_secret": "<secret echoed from the request>",
    "account": "@janedoe",
    "metadata": "<metadata echoed from the request>",
    "scopes": ["read_info", "read_payments",  "receive", "spend"],
    "permissions": ["cancel_payment"],
    "expires_at": 1821484800000,
    "budget_limit": "20",
    "budget_currency": "usd",
    "budget_period": "month",
    "budget_period_multiple": 1,
    "budget_first_reset": 1790838000000,
    "budget_utc_offset_secs": -25200
}

A rejected request:

{
    "error": "user_rejected",
    "error_message": "<human-readable message>",
    "one_time_secret": "<secret echoed from the request>",
    "account": "@janedoe",
    "metadata": "<metadata echoed from the request>"
}

Encryption

If the request set ephemeral_hpke_pubkey, the WALLET encrypts the response JSON, errors included, into a single binary blob: the 32-byte encapsulated key followed by the ciphertext, produced with single-shot HPKE (RFC 9180) using:

HPKE parameter	Value
Mode	Base
KEM	DHKEM(X25519, HKDF-SHA256)
KDF	HKDF-SHA256
AEAD	ChaCha20-Poly1305
info	domain_separator || one_time_secret_bytes. domain_separator is the ASCII bytes of the WALLET's domain separator, which for Lexe is LexeConnect-v1; one_time_secret_bytes is the request's one_time_secret decoded to its 16 raw bytes.
aad	The request's account as UTF-8 bytes, or empty if unset.

A WALLET adopting this protocol SHOULD choose its own domain separator.

The blob is carried as raw bytes, except in a redirect_uri query param, which base64url encodes it without padding.

redirect_uri delivery

The WALLET redirects the user to redirect_uri, preserving any existing query params and appending the base64url-encoded blob as a single response param. For example:

https://billsplit.com/callback?existing=param&response=<base64url blob>

The redirect_uri MUST NOT contain a fragment (a trailing #...).

post_url delivery

The WALLET POSTs the response to post_url. If the request set ephemeral_hpke_pubkey, the body is the raw blob bytes, with Content-Type: application/octet-stream. Otherwise, the body is the response JSON, with Content-Type: application/json. For example, a plaintext response:

POST https://paygate.com/lexe-connect?existing=param
Content-Type: application/json

{ "credential": "<client credential>", "one_time_secret": "<secret>", ... }

The WALLET MUST NOT follow redirects on this POST, otherwise a redirecting server could re-route a plaintext response to another host or to a plain http:// url.

mailbox_url delivery

A mailbox relays the response blob from the WALLET to REQUESTERs which cannot receive a redirect or run a public server, e.g. desktop and CLI apps. ephemeral_hpke_pubkey is required, so the mailbox holds only ciphertext (see Security Analysis).

The blob is deposited at an address, encoded as 64 lowercase hex characters:

address = SHA256(info)

info is the HPKE info defined in Encryption. Only the holders of the connection string can compute the address.

• The WALLET POSTs the raw blob bytes to <mailbox_url>?address=<address> with Content-Type: application/octet-stream. The mailbox responds 200 OK once the blob is stored.
• The REQUESTER polls the same url with GET requests. The mailbox responds 404 Not Found until the blob arrives, then 200 OK with the raw blob bytes as the body.
• The mailbox MUST reject POSTs to an occupied address with 409 Conflict, so the first write wins. A WALLET that misses the 200 OK needs to retry, so the mailbox MUST accept a byte-identical re-post with 200 OK, and SHOULD NOT extend the TTL. Blobs persist until the TTL expires, surviving reads, so the REQUESTER can safely retry. Responses are a small JSON object plus constant HPKE overhead, so the mailbox MAY cap blob size.
• The mailbox SHOULD allow cross-origin GETs, e.g. with Access-Control-Allow-Origin: *, so browser-based REQUESTERs can poll it.

Lexe runs a public mailbox at https://lexe.app/mailbox with a 5 minute TTL. REQUESTERs are welcome to run their own.

Security Analysis

Request hijacking

LexeConnect intentionally does not allow a custom scheme (e.g. lexeconnect://) for credential requests: a malicious app could register itself as a handler for the scheme, intercept the request, and substitute its own ephemeral_hpke_pubkey and redirect_uri before forwarding it on. Requests are therefore delivered only via the connect url's verified app link, QR scan, or paste.

Response interception (redirect_uri)

The WALLET cannot verify that a https:// redirect_uri is registered as an app link, and an unclaimed link opens in the browser, leaking its contents into history, extensions, and sync. With a custom scheme, any installed app can register itself as a handler and capture the redirect outright. So the protocol assumes the redirect can be intercepted, and requires ephemeral_hpke_pubkey whenever redirect_uri is set. A hijacker then captures only an opaque blob.

With post_url, TLS already protects the response in transit, so encryption is recommended but not required. The plaintext option exists to minimize integration cost: a REQUESTER can support LexeConnect with nothing but an HTTPS endpoint receiving JSON, and no crypto code.

Response forgery

Anyone can invoke a redirect_uri or POST to a post_url, so delivery alone does not prove a response came from the WALLET or matches any outstanding request. An attacker could thus submit their own valid credential with a victim's metadata, binding the attacker's wallet to the victim's account, so invoices the victim generates would pay the attacker.

Every response therefore echoes the request's one_time_secret, which the REQUESTER MUST match against an outstanding request and consume. In a plaintext post_url response, this echo is all that stops a forged error (a classic CSRF) from tricking the REQUESTER into abandoning a live request. In an encrypted response, the echo sits inside the ciphertext, so forging any response requires the request's ephemeral_hpke_pubkey and one_time_secret. The pubkey MUST be fresh per request, otherwise an attacker could encrypt their own credential under a previously seen pubkey.

These bindings assume the connection string stays private until the request completes: it contains the secrets that responses are checked against, so an attacker who reads it off the user's screen or clipboard (e.g. photographs a displayed QR code) can bind their own credential in the victim's place. Screen and clipboard privacy are outside this threat model, though the REQUESTER's screen advances before the intended user has scanned, so the swap can be noticed. To make a foreign credential evident, REQUESTERs SHOULD display the connected wallet's identity, such as its Lightning Address or Human Bitcoin Address, for example: "Connected wallet: janedoe@lexe.app".

Responses only match outstanding requests, so the REQUESTER SHOULD also expire them after a short window, discarding the ephemeral private key and one_time_secret. An expired connection string is then useless, photographed or not.

Request forwarding

An attacker can initiate a connection on a service themselves and forward the real link or QR code to a victim, whose approval screen shows the service's real domain. Approving would bind the victim's wallet to the attacker's account, the analog of OAuth device-code phishing.

account defends against this. The WALLET displays it, so a forwarded request visibly names the attacker's account, and binds it into the HPKE aad, so rewriting it to the victim's name yields a response the attacker cannot decrypt. Plaintext post_url responses have no aad, so the WALLET echoes account instead, and the REQUESTER MUST reject a mismatch. Short request expiration and the approval screen warning (User Approval) add defense in depth.

Untrusted mailbox

Mailbox delivery is always encrypted, so the operator learns nothing but timing and size. A REQUESTER can run its own mailbox for maximum privacy. The address is a hash, so it reveals nothing about the one_time_secret, and no one without the connection string can find or occupy it. The short TTL bounds how long an unclaimed blob sits in the mailbox.

WALLET-defined parts

A WALLET adopting this protocol only needs to define:

• Connect url, registered as an app link. Lexe's is https://lexe.app/connect.
• Domain separator. Lexe's is LexeConnect-v1.
• Credential, the artifact granted on success. Lexe's is a client credential.
• Credential params and their grant classes, echoed in the response's credential fields. Lexe's are in Credential params.

A mailbox is chosen by the REQUESTER rather than the WALLET, and Lexe's public mailbox holds only ciphertext, so an adopting WALLET's users can use it too.

Test vectors

These vectors check an implementation of Encryption. Key pairs are derived as in the RFC 9180 test vectors:

• The REQUESTER's ephemeral key pair is DeriveKeyPair(ikmR), where ikmR is the bytes 0x00..=0x1f.
• The WALLET's ephemeral sender key pair is DeriveKeyPair(ikmE), where ikmE is the bytes 0x20..=0x3f.

Request:

https://lexe.app/connect?v=1&redirect_uri=https%3A%2F%2Fbillsplit.com%2Fcb&ephemeral_hpke_pubkey=b1f1b840de7a3241b02748cf9b05b74dc8c5e8451298738817bd76aa8ebe8c2b&one_time_secret=000102030405060708090a0b0c0d0e0f&account=%40janedoe&scopes=read_info,receive

	Hex
ikmR	000102030405060708090a0b0c0d0e0f101112131415161718191a1b1c1d1e1f
ephemeral_hpke_pubkey (pkR)	b1f1b840de7a3241b02748cf9b05b74dc8c5e8451298738817bd76aa8ebe8c2b
ikmE	202122232425262728292a2b2c2d2e2f303132333435363738393a3b3c3d3e3f
info	4c657865436f6e6e6563742d7631000102030405060708090a0b0c0d0e0f
aad	406a616e65646f65

The plaintext is the exact bytes the WALLET encrypts, so field order matters here even though JSON does not.

Granted plaintext:

{"credential":"<client credential>","one_time_secret":"000102030405060708090a0b0c0d0e0f","account":"@janedoe","scopes":["read_info","receive"],"permissions":[],"expires_at":1821484800000}

Granted blob:

693658254630f73ad8da78fb331bf976cd42f90e0e9c9e83f40c51072a6f741718c87dfe078291112ed11fbd29fea41f7e497c02a693481c499717cb9629bf33148f84ebf928eb111ed0525e2d2cc20f23ed8043bba85f5bc6eed0b463e41461d1fc4b8238e0c59aea1e89b6041ebb0718ea5f8133994b74cd6aa22056e9e1827a5daac94185756c7a53dc4ab5d3c3f68aef2293063d337e3726489013a06e27ae68a35c9f8ae7b7fa819dafd8298949878936df24a556c2d92cd08241456aa0a7fc06f1d0562c0d0757c368b873f320f167487a45d80076451cf9135074fd7a81e94dde3e7f9ece9c5676

Error plaintext:

{"error":"user_rejected","one_time_secret":"000102030405060708090a0b0c0d0e0f","account":"@janedoe"}

Error blob:

693658254630f73ad8da78fb331bf976cd42f90e0e9c9e83f40c51072a6f741718c87bfe1089865d609a0ba26eb6d951784f7004bc820c5d17d01cc09d02a23b15d4f9b4be24f711358601117843815b70add504a9a64d5ec6e8d1b361ec1768d5ad4ed03eb3c2cee24b80e04702fb5618b954c438dd0f6cc308a9225be3f0836b5dedff05a6d01574bfc9c06ccb2be20b0139

License

This document is licensed under CC-BY 4.0. Any mention of "LexeConnect", with a link to this document where practicable, satisfies the attribution requirement.
