Summary

Reworks the sidebar on top of develop's Build / Operate taxonomy, taking the interaction idea from #283 (accordion + collapsed-rail flyouts) and applying it to the current UI structure instead of the old flat nav it was built on. Supersedes / closes the need for #283 (which was based on the pre-taxonomy UI).

New structure

Group Design Items
Dashboard flat item
Build label group (unchanged) Agents, Agent Prompts, Flows
Know label group (new) Tables (/data), Sources (/knowledge)
Operate label group (unchanged) Chat, Executions, Artifacts
Settings collapsible group AI Providers, Models, Agent Summary Prompts, Console, Integrations, Integration Services, MCP Servers, Roles, Users

Key taxonomy decisions:

  • "Know" label — keeps the terse verb register of Build/Operate (BUILD, OPERATE, KNOW).
  • "Documents" renamed to "Sources" — the page is any vector/FTS-backed retrieval store (Chroma, sqlite-vec, pgvector), not literal documents, and the name scales to future source types (Files, Repos, Drives) nesting under Know as additional ingestion surfaces feeding the same retrieval layer.
  • Users moved from People into Settings — user management is an admin task, not a daily destination; the single-item People group is gone.
  • Know stays a flat label group (only 2 items — a collapsible would cost a click for no benefit); Settings is the only collapsible group, where collapsing earns its keep at 9 items.

Mechanics

  • New NavCollapsibleGroup component (frontend/src/components/nav-collapsible.tsx): renders as an accordion section when the sidebar is expanded, and as a DropdownMenu flyout popover when the rail is collapsed — sub-items stay reachable without expanding the rail (replaces the old "click Settings to force-expand the rail" workaround).
  • The active route auto-opens its group; per-item capability gating is preserved (users.manage, agent.view_all, etc.).
  • app-sidebar.tsx is now just group definitions + capability filtering — future taxonomy changes are one-line edits.

Testing

  • Built and live-verified on a disposable bench provisioned as a full data restore of a production-like site (47 agents, real conversations): all routes resolve, no dead links, flyout works on the collapsed rail, chat history loads clean.
  • Screenshot review of expanded sidebar, Settings accordion, and collapsed-rail flyout — all render as designed.

Screenshots

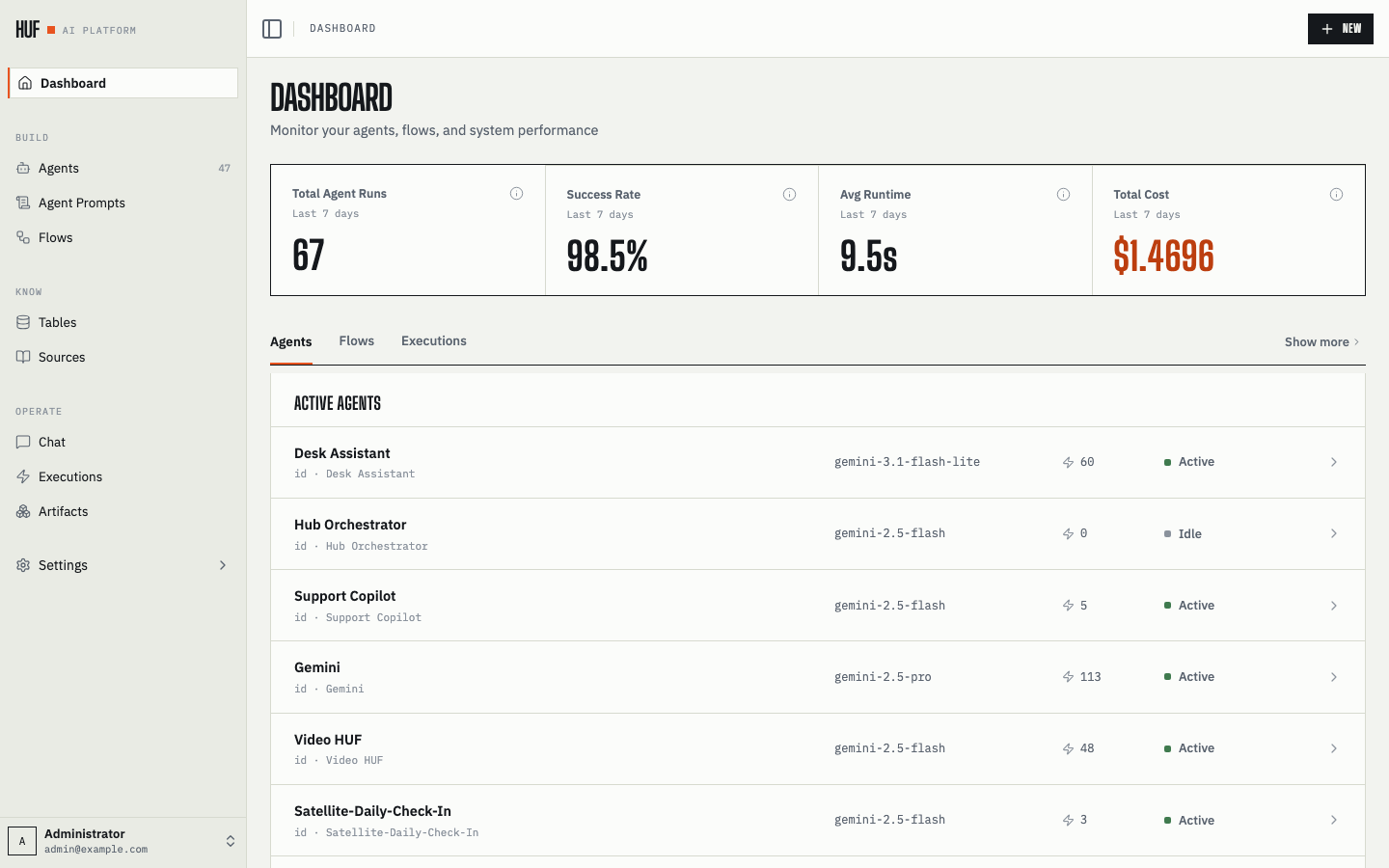

Expanded sidebar — Build / Know / Operate label groups, Settings collapsible:

Expanded sidebar with Know group

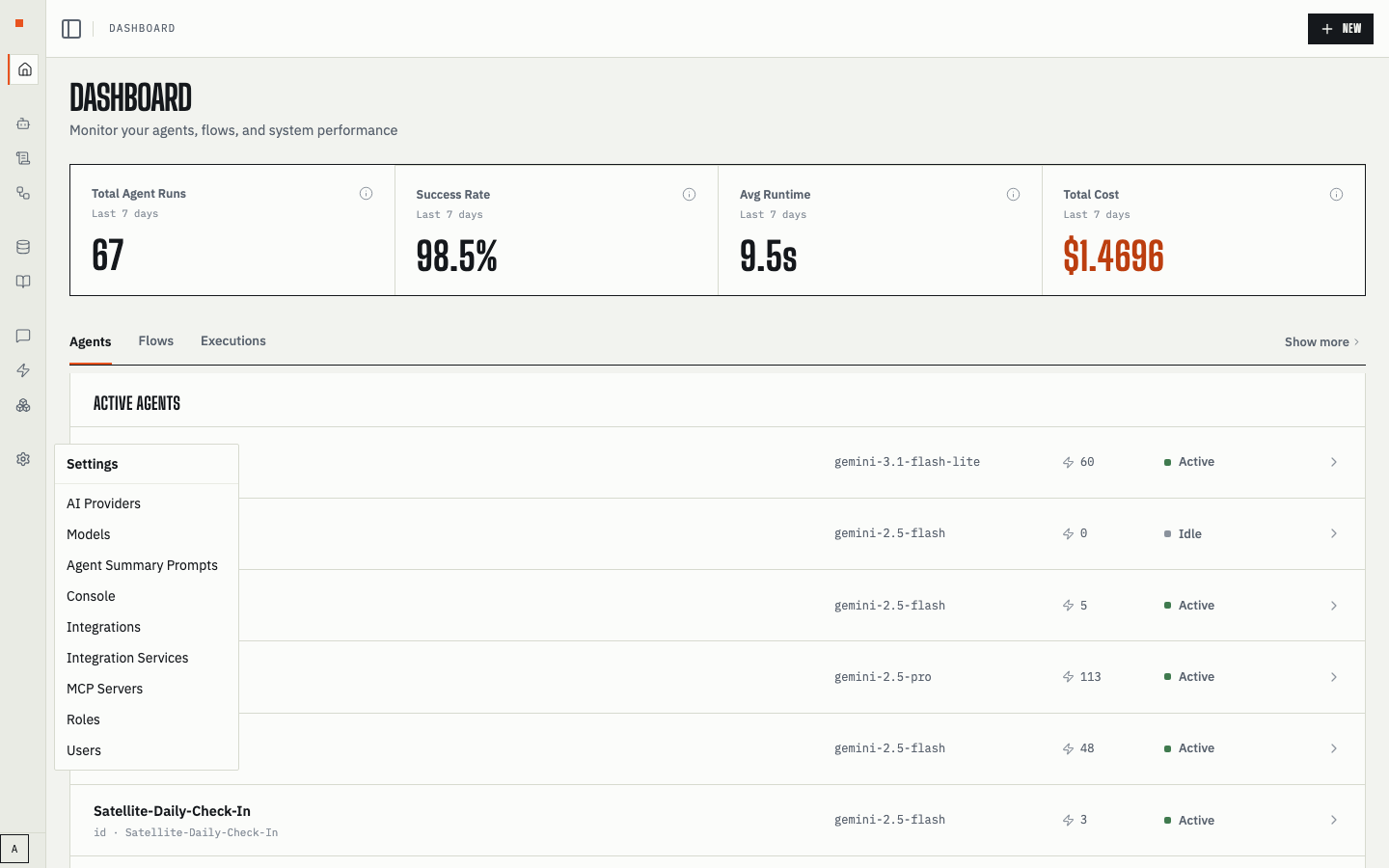

Collapsed rail — Settings flyout popover (all 9 items incl. Users):

Collapsed rail with Settings flyout

Notes

  • Route paths are unchanged (/knowledge, /data, /users, ...) — only sidebar lingo and grouping moved, so no link breakage.
  • The /knowledge page itself still titles "Knowledge Sources"; renaming the page title to match "Sources" can follow separately if the lingo sticks.

esafwan added 3 commits July 25, 2026 19:08
…sers under Settings

Takes the interaction idea from PR #283 (single-open accordion + collapsed-rail
flyout popovers) and applies it to develop's Build/Operate grouping instead of
the old UI structure:

- Build: Agents, Agent Prompts, Flows (Data/Knowledge moved out)
- Knowledge (new collapsible group): Tables (/data), Documents (/knowledge)
- Operate: Chat, Executions, Artifacts (unchanged)
- Settings (collapsible): existing items + Users (People group removed;
  user management is an admin task, not a daily destination)
- New NavCollapsibleGroup component: accordion section when expanded,
  DropdownMenu flyout when the rail is collapsed; active route auto-opens
  its group; capability gating preserved per item
…s to Sources

- KNOW is now a flat label group (Tables, Sources) matching Build/Operate —
  always visible, no expand click; only Settings stays collapsible
- 'Documents' renamed to 'Sources': it is any vector/FTS-backed retrieval
  store (Chroma, sqlite-vec, pgvector), and the name scales to future source
  types (Files, Repos, Drives) nesting under KNOW
@esafwan

esafwan commented Jul 26, 2026

Copy link
Copy Markdown
Contributor Author

Superseded by consolidated Apps/workspace/navigation PR #471. Navigation taxonomy and collapsed-rail behavior are preserved there alongside the Apps launcher integration.
